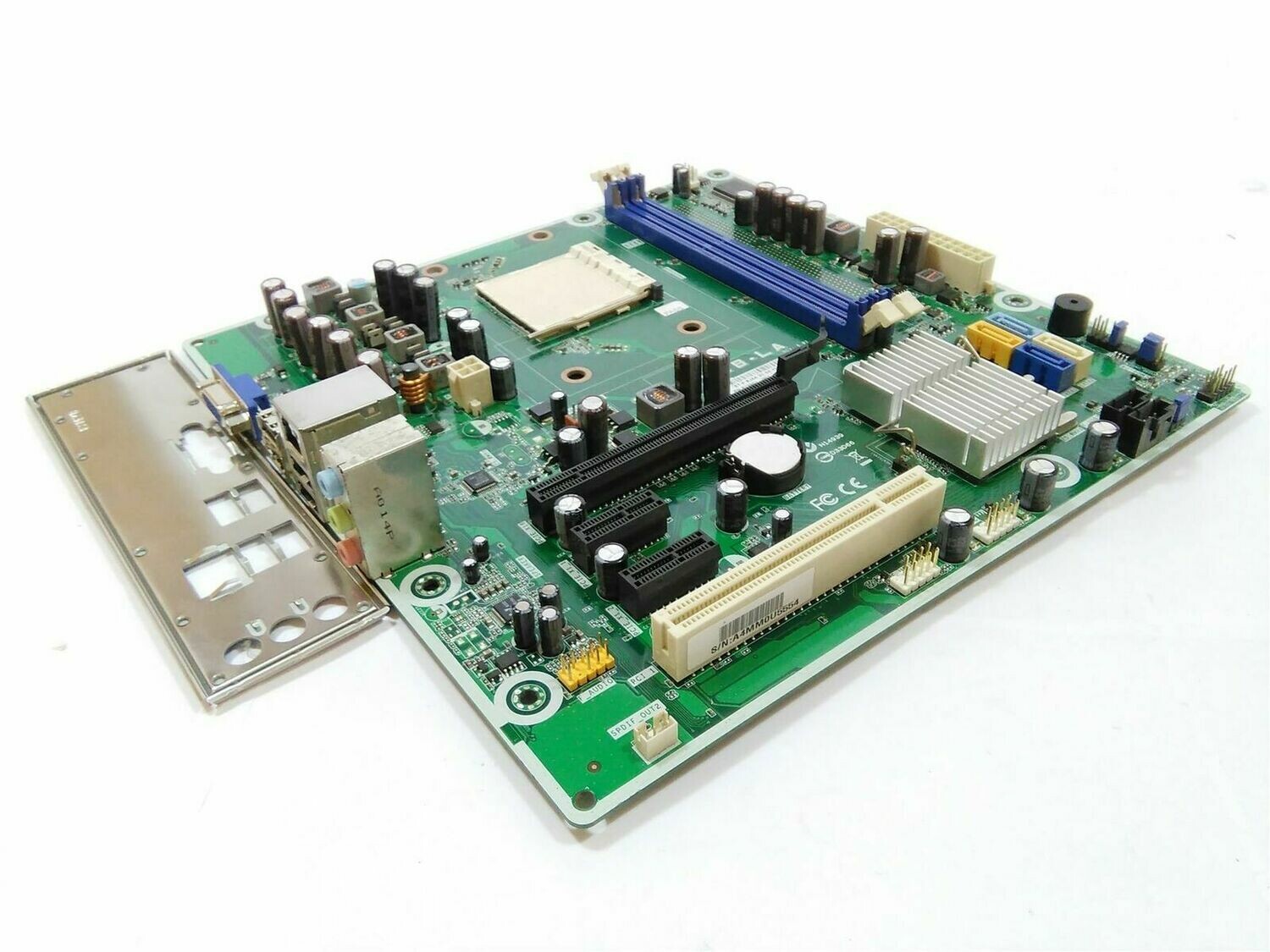

HP AMD M2N68-LA NARRA6-GL6 Motherboard for Pavillion ** REFURBISHED **

HP AMD M2N68-LA NARRA6-GL6 Motherboard for Pavillion ** REFURBISHED **

Manufacturer's Model: Pegatron M2N68-LA
HP/Compaq Model: Narra6-GL6
Form Factor: Micro-ATX: 24.5 cm (9.6 inches) x 24.5 cm (9.6 inches)
Video: NVIDIA GeForce 6150SE nForce 430
Audio: Integrated Realtek ALC888S Audio
CPU Socket Type: AM3
CPU TDP: 95 Watt
HP Support Page

Expansion Slots
One PCI Express x16
Two PCI Express x1
One PCI

I/O Ports
Video Graphics Adapter port
USB 2.0: 4
RJ45 Network (LAN)
Audio: Line in
Audio: Front speaker/Line out
Audio: Microphone in

Supported CPU Processors
AMD Phenom II X4 9xx/9xxe/8xx Quad-Core (Deneb)
AMD Phenom II X3 7xx/7xxe Triple-Core (Heka)
AMD Phenom II X2 5xx (Callisto)
AMD II Athlon X4 6xx/6xxe (Propus)
AMD II Athlon X3 4xx/4xxe (Rana)
AMD II Athlon X2 2xx/2xxe (Regor)
AMD Sempron 1xx (Sargas)

Supported Memory
Dual channel memory architecture
Two DDR3 DIMM (240-pin) sockets
Supported DIMM types:
PC3-8500 (DDR3-1066)
PC3-10600 (DDR3-1333)
Non-ECC memory only, unbuffered
Supports 2GB DDR2 DIMMs
Supports up to 4 GB* on 32 bit PCs
Note: *32-bit operating systems cannot address a full 4.0 GB of memory.
